Nam：5.25 inch Dynamic SSD SATA x 2 RAM Disk Model：ANS-9010 Price： Product Origin：台湾│TaiWan Introduction： 5.25 inch SATA x 2-to-DDR2 Dynamic SSD Solid State Drive

DetailsParameter

--- Enterprise database, the player overclocking, industrial environments, the best choice for high-speed storage

July 1, 2008 Taipei - ACARD expected to be launched in August ANS-9010 / ANS-9010B RAM Disk, high-speed storage to break new records again, this letter billion to 6 ~ 8 DDR2 DIMM group and a group of CF slots combined into a small-capacity high-speed SATA interface hard disk drives, ANS-9010 / ANS-9010B RAM Disk has the following characteristics: LED indicators provide power, memory, battery power, SATA devices, backup status recognition One to two SATA interface Easy to install on the host system, out of the box without installing drivers One CF slot and two-way backup key Memory support up to 48GB ~ 64GB Support DDRII 400/533/667/800 Built-in 7.4V 2400mAh Lithium battery, enough to complete the backup job Cross-platform support for Windows, Linux, Mac and other operating systems Data transfer of 200MB or 400MB per second Based on these characteristics, specifications, the product range of applications such as graphic design, industrial engineering, medical equipment, computer gamers, server database, Mac based publishing, have good performance. RAM Disk using a lot of advantages of DDR2 RAM, on the one hand faster, on the other hand more power, in connection with two sets of SATA host when used with the data transfer rate up to 400MB/sec, more than speed when the other This device contains a backup CF card slot, so that user before the computer shuts down, you can back up data to advance CF memory card, and then back up at the next boot back to RAM Disk, With this useful feature , users can always go with the data, not just a backup in the host computer in addition to the CF card is also a major task is to match the built-in lithium battery, it detects broken power case, the RAM Disk will automatically back up data to a CF card, save important data. It was designed to control interface, simple operation, and LED lights to judge by the power, data transfer, battery power and other operating conditions. On the basis of information in the application, the majority of software engineers, not usually spend the most time in the writing program The following is a test for the ANS-9010 to read data about second 350.04MB The following is written for the ANS-9010 test data per second 287.55MB

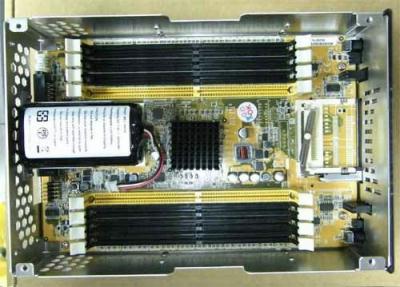

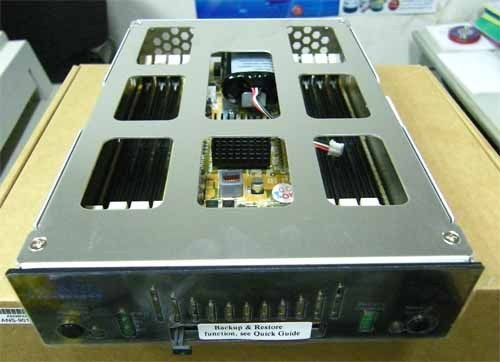

產品介紹         ACARD ANS-9010 RAM Disk by eight of DRAM memory modules composed of solid-state hard drive, faster than traditional hard drives with flash much faster. RAM Disk with a rate of speed random access and automatic backup disk features, ideal for graphic design and database systems. Top

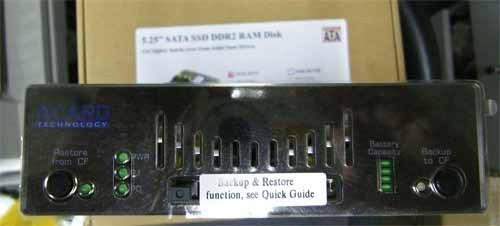

特色                                     Support up to 64GB memory Support ECC / non-ECC DDRII 400/533/667/800 Automatic backup / restores DDRII memory and CF data between the disk Built-in lithium battery DIMM fault LED indicator, battery level, power status, SATA ports to read the status and backup status   Driver less: need driver

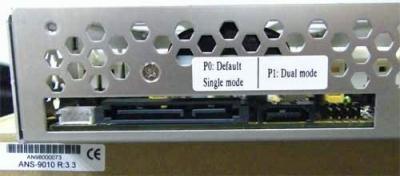

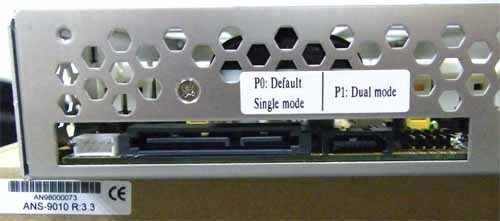

Interface, two SATA 3.0Gbps interface support

240-pin DDR2 DIMM module slots x 8

Front panel with a CF slot

Built-in 7.4V 2400mAh Lithium battery, when external power is sufficient to complete the backup job when the

Data transfer rate up to 400MB / s

SATA interface I / O processing times up to about 20,000 times per second

Size: 42 (H) x 145 (W) x 214 (D) mm

Dynamic SSD / Flash Disk by DRAM / SDHC memory modules made of solid-state hard drive, hard disk access speed is much higher than traditional and portable disk.

Note: This product does not include the sale of DDR2 memory
